Dataset with DVC¶

Introduction¶

The most popular Version Control System, Git, is not adapted for versioning large amounts of data, it is not recommended to commit big files in your repository.

When we need to version large amounts of data we use Data Version Control (DVC), that lets you capture the versions of files/directories in your Git repository, while storing them on-premises or in cloud storage. Each DVC "commit" updates dvc-specific files, and these modifications can be committed with Git. The real data is then versioned and stored with DVC, while your Git repository references the "pointer" to this data. The result is a single history for your source code and data that you can traverse — a proper journal of your work!

The DVC integration offered by SharingHub enables protected access to versioned data, while respecting the management of data access rights carried out on GitLab, making it the central point for information management.

Prerequisites¶

Install¶

First, you must of course install DVC.

Follow their documentation: Installation

Git repository¶

When you have access to the dvc command, you will need to use it in a Git repository. You can create one for this tutorial, or use an existing one.

Initialize a repository for the tutorial:

git init example-dvc
cd example-dvc
touch README.md
git add README.md
git commit -m "Initial commit"
# replace with your own GitLab project url
git remote add origin https://gitlab.example.com/<project-path>.git
git push --set-upstream origin main

GitLab project (Optional)¶

If you want to use SharingHub integration with DVC, you will need to push your repository in GitLab. As described here you must add the topic sharinghub:dataset to the project.

Setup DVC¶

Init¶

The first step is to initialize the DVC configuration.

dvc init

The configuration itself is not ignored by Git, as you need to share it with other users. The authentication credentials on the other hand will be ignored for obvious security purposes.

Configure remote¶

You will now need to configure a remote storage and the appropriate authentication.

SharingHub¶

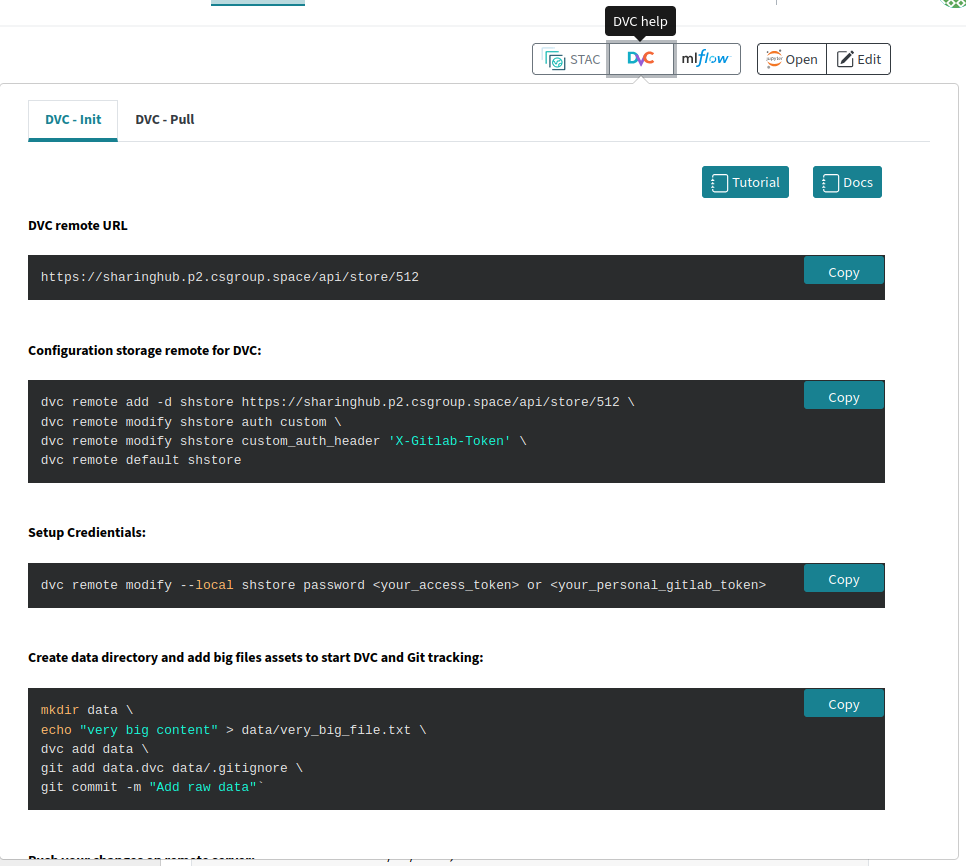

You can use SharingHub as the remote storage of DVC. In your project page you can find a code generator to help you for the setup.

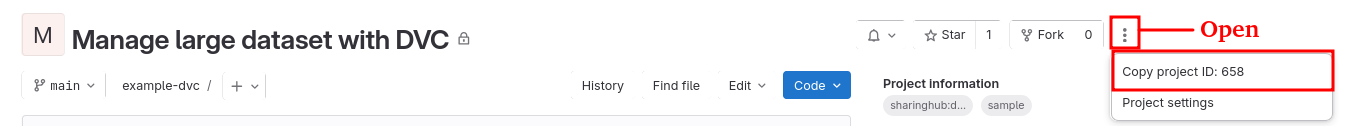

Copy the project's unique identifier (<project_id>) by connecting to the GitLab interface via the URL https://gitlab.example.com/<project-path>.

This ID is necessary to identify the storage path for DVC, you can continue the configuration.

# replace with your sharinghub URL and the correct project ID
dvc remote add --default sharinghub https://sharinghub.example.com/api/store/<project_id>
dvc remote modify sharinghub auth custom
dvc remote modify sharinghub custom_auth_header 'X-Gitlab-Token'

You can commit and push the DVC configuration:

git add .
git commit -m "Initialize DVC"
git push origin main

Finally, configure your authentication credentials with a GitLab access token, you will need at least the read_api permission.

dvc remote modify --local sharinghub password <your-personal-gitlab-token>

S3 bucket¶

You can alternatively chose to use an S3 bucket for the storage. In order to be able to use this bucket for other repositories use a subpath in the bucket path. It could be the project ID, path, name, slug etc...

dvc remote add --default my-bucket s3://<bucket>/<project-identifier>
dvc remote modify my-bucket endpointurl <s3-endpoint-url>

Now commit and push the DVC configuration:

git add .
git commit -m "Initialize DVC"
git push origin main

Configure the remote credentials with your S3 access key id and secret access key.

dvc remote modify --local my-bucket access_key_id <access-key-id>
dvc remote modify --local my-bucket secret_access_key <secret-access-key>

Usage¶

Tracking data¶

The use of DVC is simple, but because it it used alongside Git you must always be rigorous and not forget to use it correctly.

Let's pick a piece of data to work with. We'll create a file, very_big_file.txt, in the data directory.

mkdir data
echo "Very big content" > data/very_big_file.txt

Use dvc add to start tracking the dataset:

dvc add data

DVC stores information about the added file in a special .dvc file named data.dvc. This small, human-readable metadata file acts as a placeholder for the original data for the purpose of Git tracking. You can track files or directories.

Next, run the following commands to track changes in Git:

git add data.dvc .gitignore
git commit -m "Add data"
dvc push
git push

Now, we can modify the data.

echo "Very big content but different" > data/very_big_file.txt

Update DVC tracking:

dvc add data

You will notice that data.dvc was modified to reflect that the data changed. To finalize the update, commit and push.

git add data.dvc
git commit -m "Modify data"
dvc push
git push

By combining Git and DVC, if you go back to the previous commit you can synchronize the data to the previous version.

git checkout HEAD~1
dvc checkout

Retrieving data¶

To retrieve the managed data:

• Clone the Git project.

  git clone https://gitlab.example.com/<project-path>
  cd <project-dir>


• Configure authentication credentials as described in the section Configure remote.

  # Credentials setup for SharingHub integration
  dvc remote modify --local sharinghub password <your-personal-gitlab-token>


• Download the data through dvc pull.

  dvc pull
